Pinpoint Power Leak / Short Circuit with Thermal Camera

18.05.22 01:53 PM By iMobile

Step 1

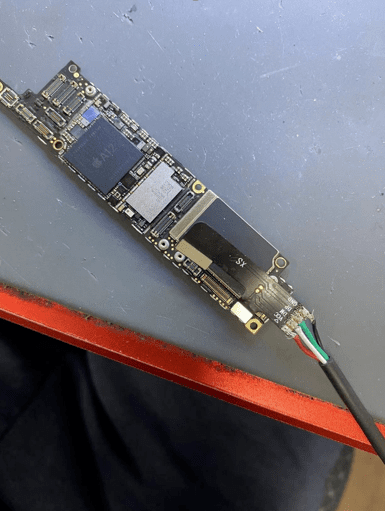

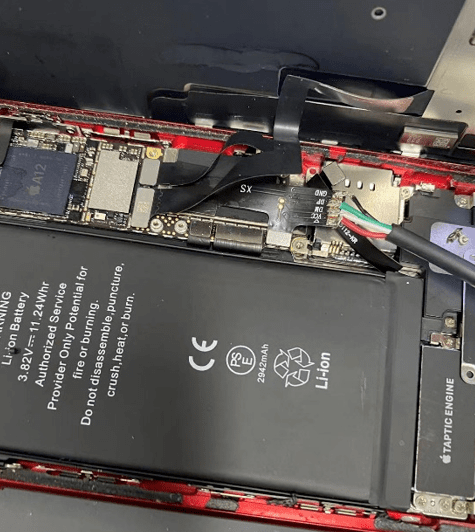

Connect mainboard to the power supply.

Step 2

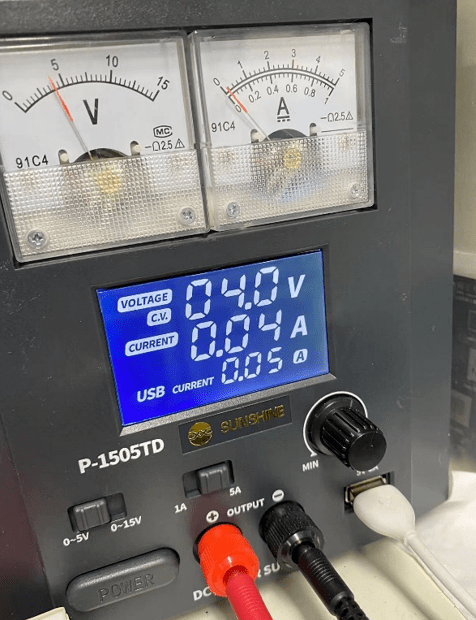

Power supply reads 0.04A current going through the circuit.

It means some component on the circuit is shorted or there's a power leakage somewhere on the board.

Step 3

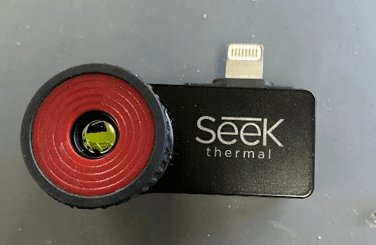

We use this Seek thermal camera to scan the device for hot spot.

Plug it into an iPhone and open the app.

Step 4

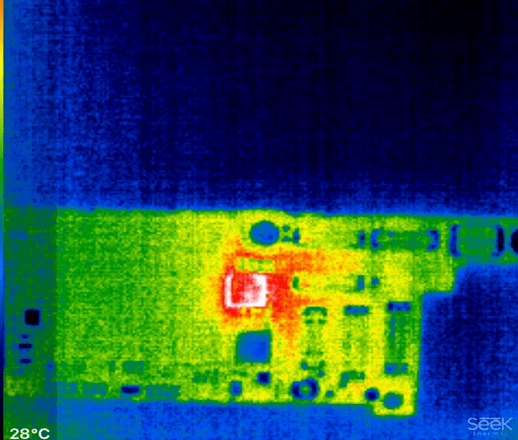

It's not too hard to spot the Audio IC is heated to 30 C Degree.

Step 5

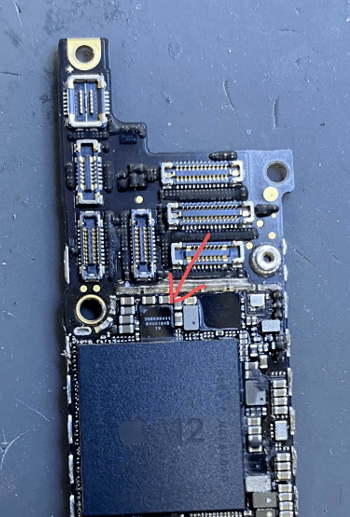

Change IC to fix the issue.

Step 6

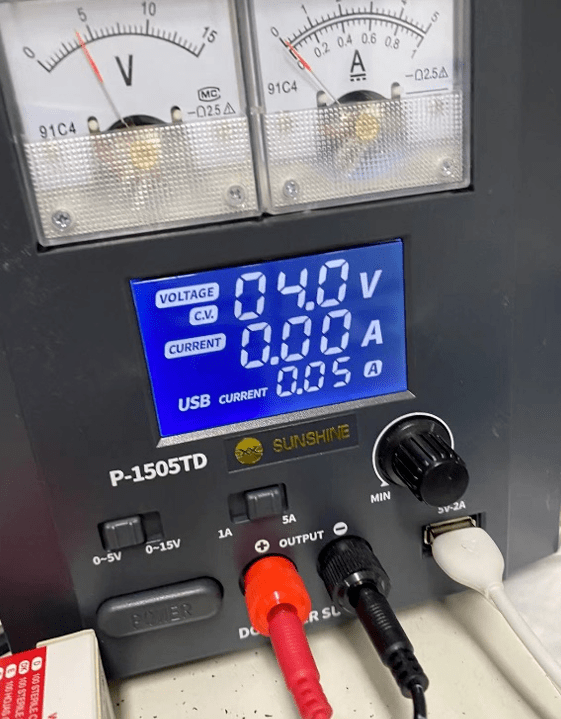

Hook the power supply back to motherboard and check.

Well played!
