iMobile Store - iMobile Blogs , Repair UpdatesiMobile Store - iMobile Blogs , Repair Updateshttps://www.imobilestore.com.au/blogs/repair-updatesSun, 26 Apr 2026 11:56:31 -0700http://zoho.com/sites/<![CDATA[Calibrate Fingerprint Sensor on Google Pixel 6/ 6 Pro]]>https://www.imobilestore.com.au/blogs/post/calibrate-fingerprint-sensor-on-google-pixel-6-6-proCalibrating Google Pixel 6 / 6 Pro fingerprint sensor.]]>


It's pretty a straight forward process, but there can be hiccup for some.

Firstly, make sure you use a Chrome browser to do this.  Secondly, make sure you are using a real service pack screen. Then we can proceed.

Step 1

Go to this website:

https://pixelrepair.withgoogle.com/udfps

Step 2

Follow the instruction on the page.

Step 3

Turn off the device, enter Fastboot mode.

Connect the phone to PC.

Step 4

Select Pixel 6 and accept the connection on browser.

Step 5

install the software.

Step 6

Wait while it does it's job.

Step 7

Once it's finish, the phone will restart.

Test the fingerprint now.

Note Again: It only works with Service Pack screen and Google Chrome Browser.

Pixel 6 Service Pack Screen
]]>Thu, 09 Jun 2022 14:37:20 +1000<![CDATA[Stripped Screw Removal Trick]]>https://www.imobilestore.com.au/blogs/post/trick_to_remove_scripped_screwIt's all about Yin and Yang. When you act too macho, you can end up with a more stubborn barrier. Bad luck, now you've got to spend more time to remedy ]]>

It's all about Yin and Yang.

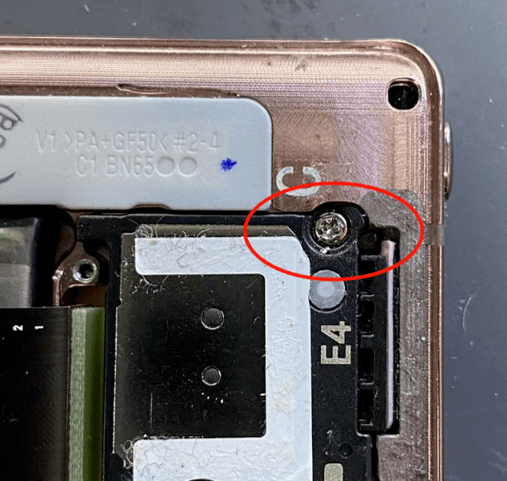

When you act too macho, you can end up with a more stubborn barrier.

Bad luck, now you've got to spend more time to remedy the situation.

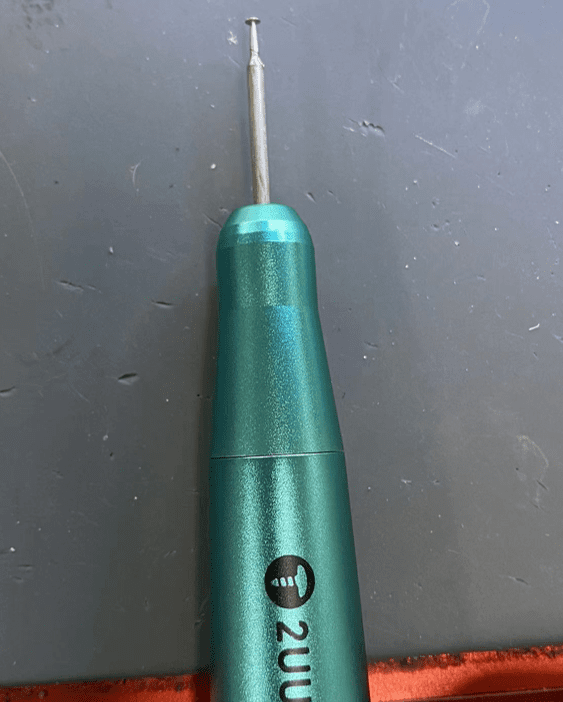

We will use a electric tool called 2UUL grinder.

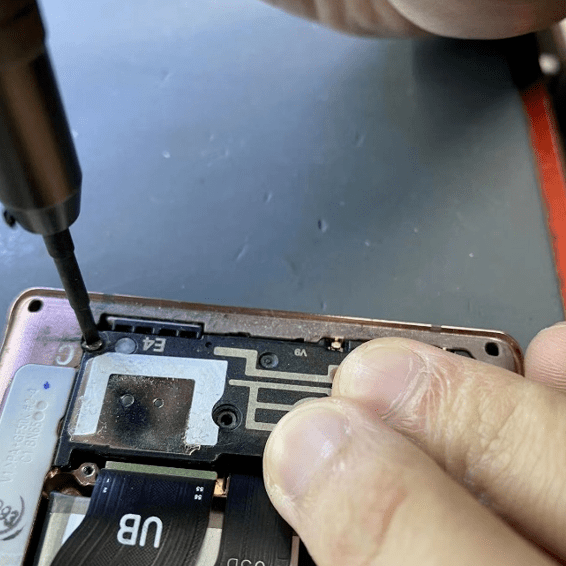

Now be gentle and take your time to grind until a flat line opens up.

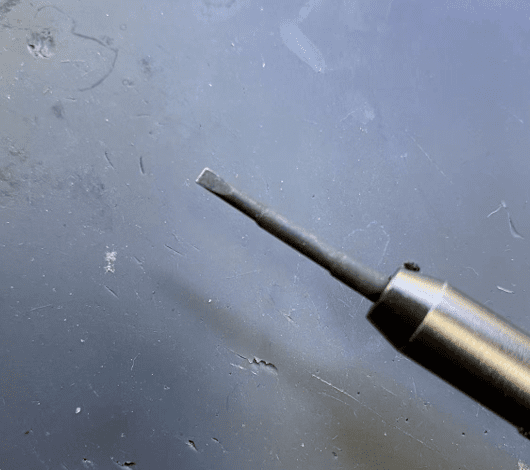

Now pull out your little tool.

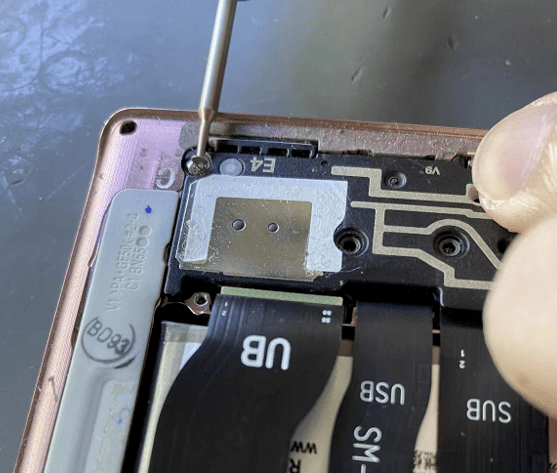

Insert as usual.

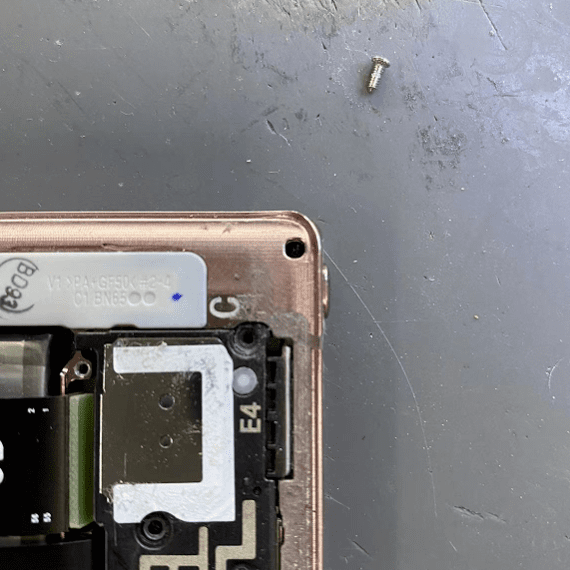

And finish it up.

]]>Fri, 03 Jun 2022 12:38:56 +1000<![CDATA[iPhone 12 Series NFC/ Apple Pay Dysfunctional]]>https://www.imobilestore.com.au/blogs/post/iphone-12-series-nfc-apply-pay-dysfunctionalHere're the 3 most important things to check when Apple Pay won't work.]]>

From time to time, after fixing the customers phone, the NFC or Apple Pay becomes malfunction.

Here're the 3 most important things to check.

We are using an iPhone 12 Mini as demo.

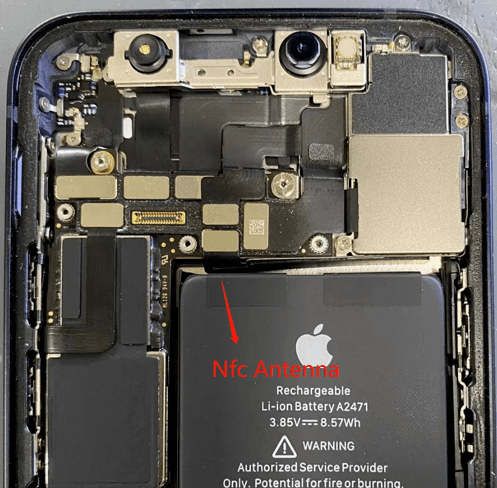

This is The NFC antenna, check if it's broken or whether it's connected properly.

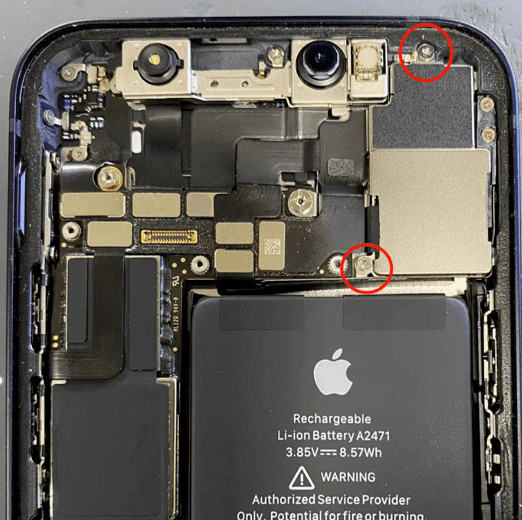

Check if any of the two screws are missing.

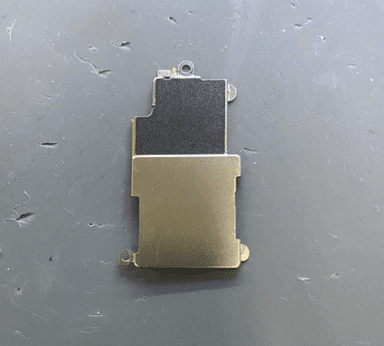

The NFC will not work with this metal plate even if the screws are in place.

]]>Tue, 24 May 2022 16:59:26 +1000<![CDATA[Replace Front Camera While Keeping Face ID Function (iPhone 13 Pro Max)]]>https://www.imobilestore.com.au/blogs/post/Front-Camera-Keeping-Face-ID-iPhone-13One cannot just replace the whole front camera module when fixing an iPhone with Face ID. Here's a step by step demo working on a iPhone 13 Pro Max front camera flex.]]>

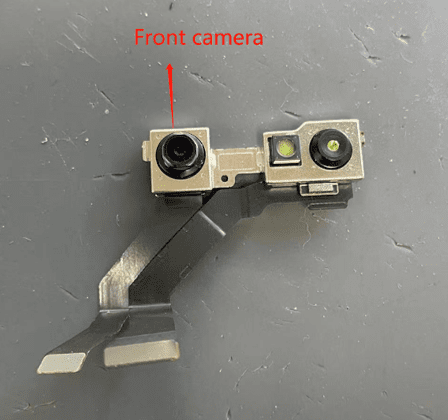

One cannot just replace the whole front camera module when fixing an iPhone with Face ID.

The old Face ID part needs to be kept as it's uniquely encrypted to the device.

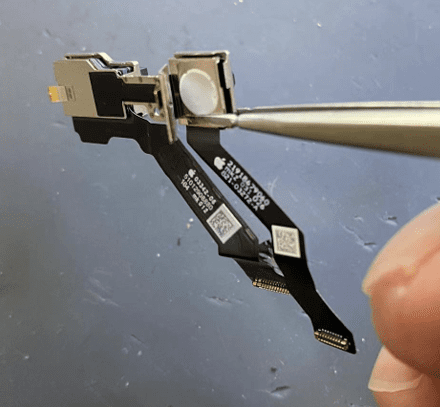

Here's a step by step demo working on a iPhone 13 Pro Max front camera flex.

Step 1

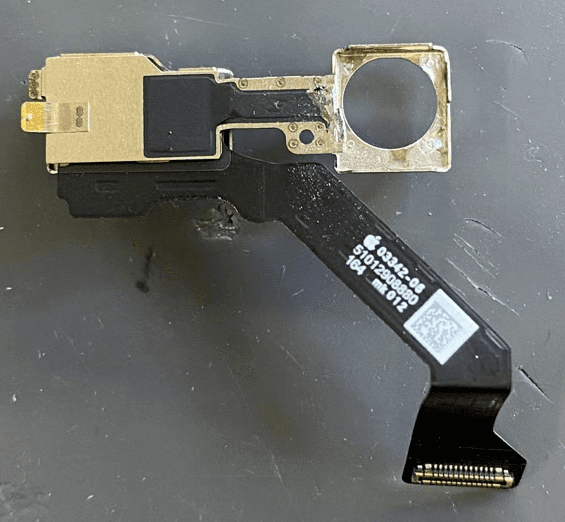

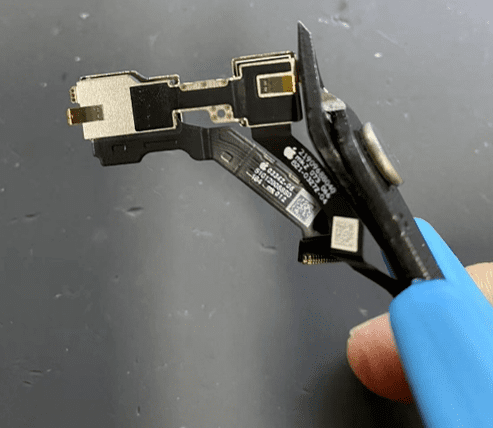

Cut the metal frame to remove the old camera from the module.

Step 1.2

Using a heat gun to melt the glue (works best at 200 C), and take out the old camera.

Step 1.3

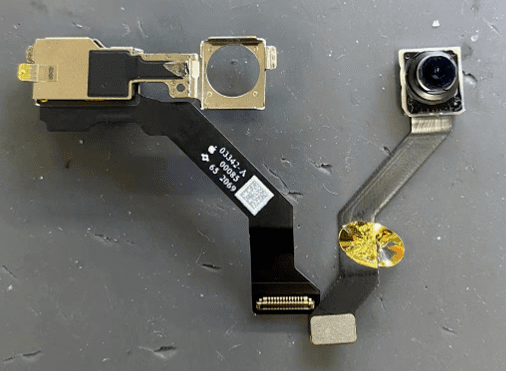

This is how it looks after the removal.

Step 2

Repeat the same procedure to extra new front camera from the new module.

Step 3.1

Now it's time to mix the ingredients.

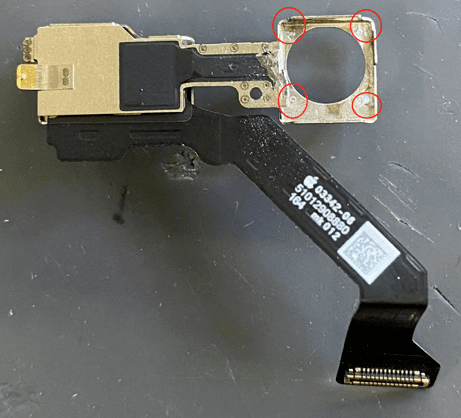

Add super glue to the corners of the original module.

Step 3.2

Add the new camera to the original Face ID.

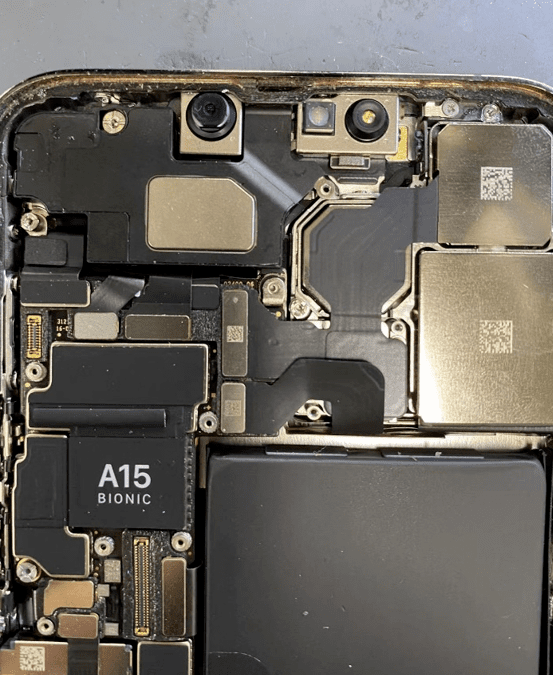

Put it back.

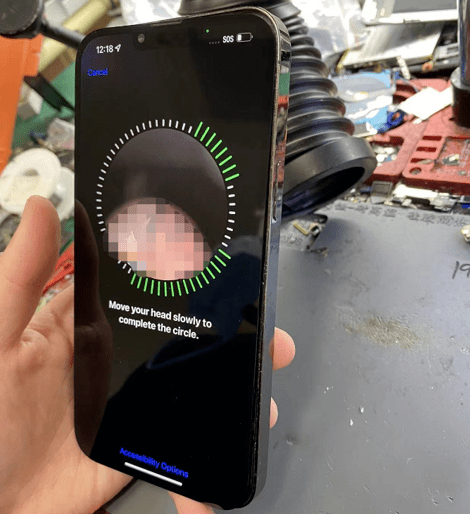

Working now.

This is how to change add front camera back to old Face ID module.

For other models it is roughly the same but can be slightly different.

]]>Tue, 24 May 2022 14:45:42 +1000<![CDATA[Micro-soldering Equipment Check List]]>https://www.imobilestore.com.au/blogs/post/micro-soldering-equipment-check-listFor those wanting to start doing the actual work, here is a list of devices for microsoldering. Microscope and the repair station. Good to have a slidin ]]>

For those wanting to start doing the actual work, here is a list of devices for microsoldering.

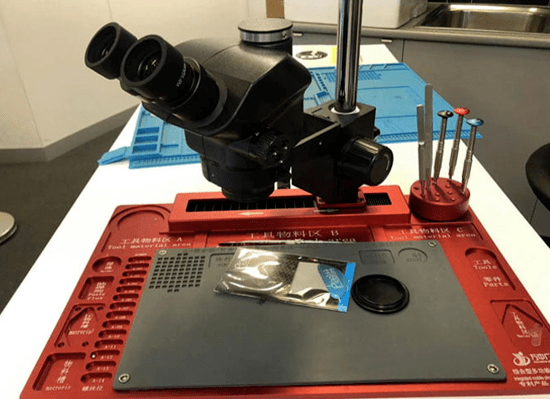

Microscope and the repair station.

Good to have a sliding track, that will allow you moving left and right.

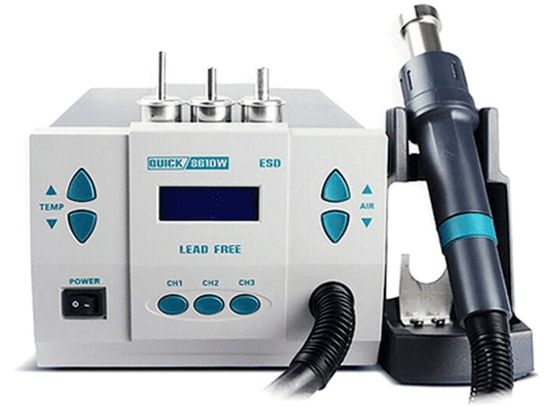

Digital heat gun.

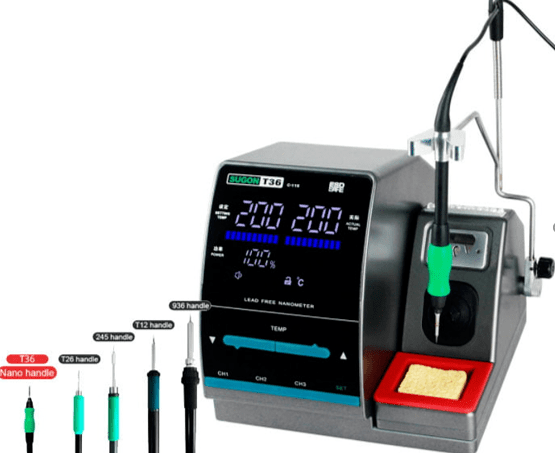

Soldering station and soldering irons.

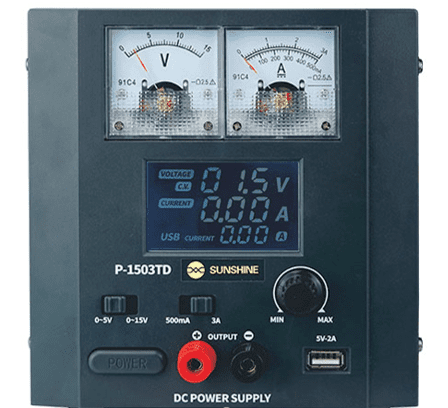

Power supply.

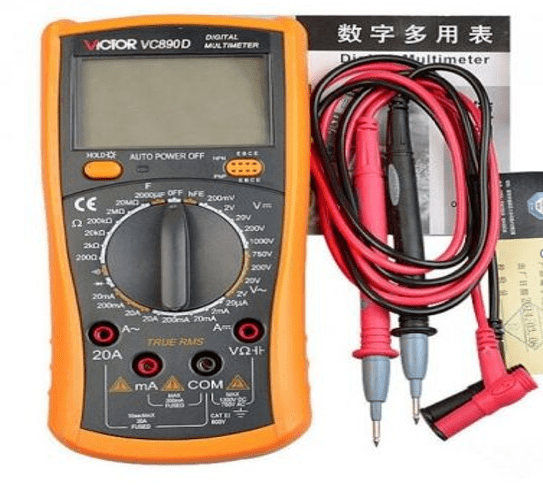

Multimeter.

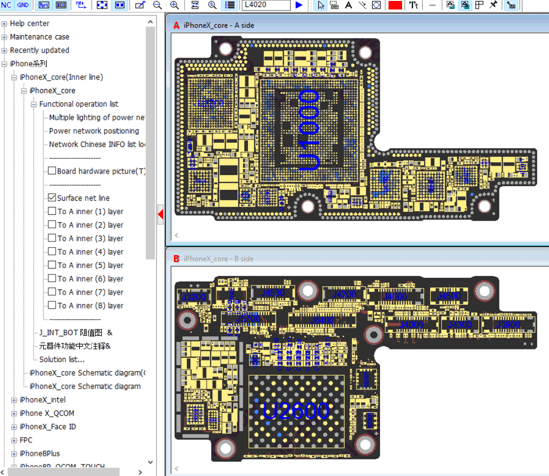

A schematic diagram software, telling you the what and where.

]]>Wed, 18 May 2022 16:37:21 +1000<![CDATA[Use a Tristar Tester To Diagnose iPad Charging Issue]]>https://www.imobilestore.com.au/blogs/post/use-a-tristar-tester-to-diagnose-ipad-charging-issueWell, this iPad is not charging. How do you determine whether to change battery, charging port or fix motherboard? A Tristar Tester will help you work ]]>

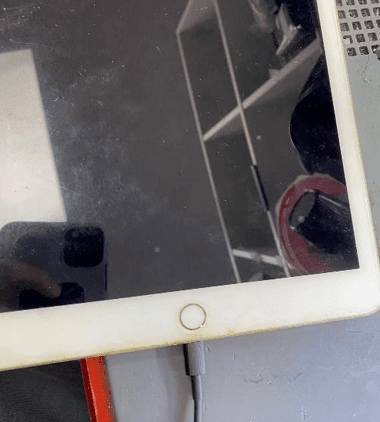

Well, this iPad is not charging. How do you determine whether to change battery, charging port or fix motherboard?

A Tristar Tester will help you work it out quick.

Step 1

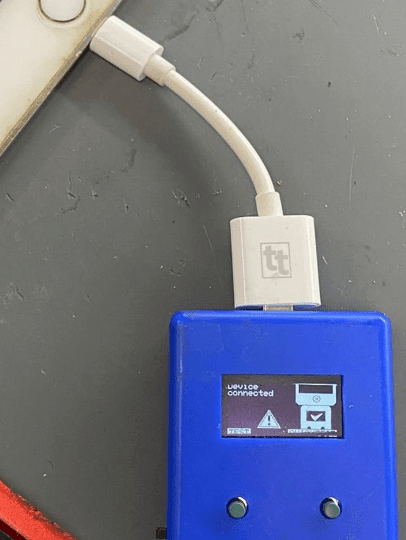

Plug it in.

This one shows a caution sign, indicating a faulty U2 IC.

Step 2

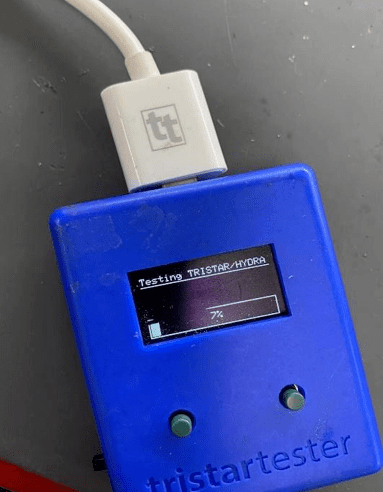

Press the right button to run a scan.

Step 3

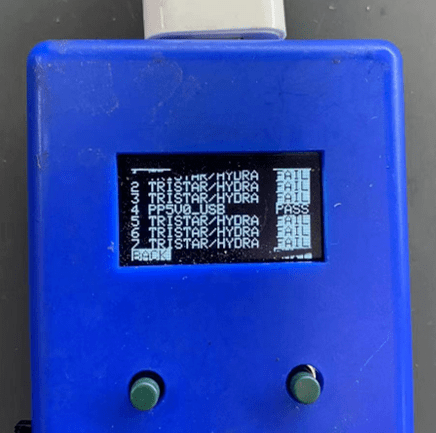

The result reads All Tristar/Hydra test has failed.

This confirms that U2 IC is faulty, you quote customer for the repair now.

Step 4

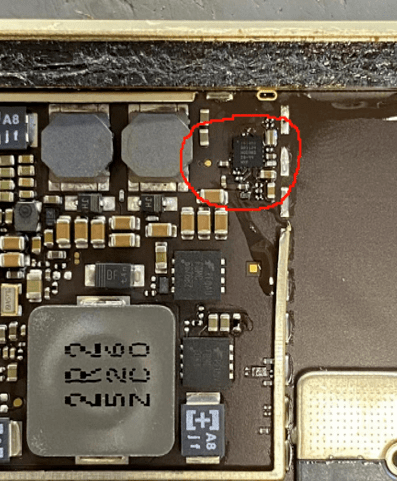

Repair the IC..

Step 5

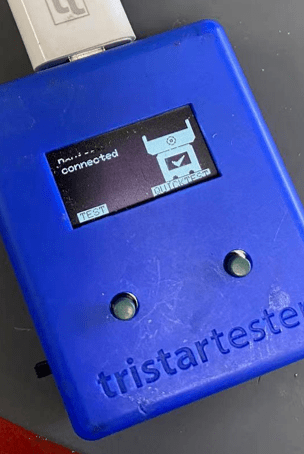

Test again. The caution sign shown before is gone.

Step 6

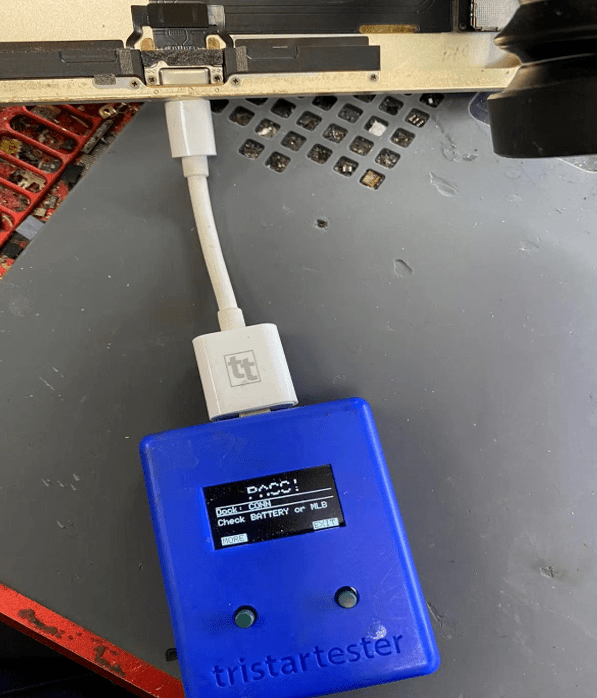

Click the button to run a quick test, if "PASS!" then congrats!

If not you can repeat the steps to fix other issues.

This device saves us a lot of debugging time.

]]>Wed, 18 May 2022 16:00:35 +1000<![CDATA[Pinpoint Power Leak/ Short Circuit with Thermal Camera ]]>https://www.imobilestore.com.au/blogs/post/pinpoint-power-leak-short-circuit-with-thermal-cameraStep 1  Connect mainboard to the power supply. Step 2 Power supply reads 0.04A current going through the circuit.  It means some component on th ]]>

Step 1

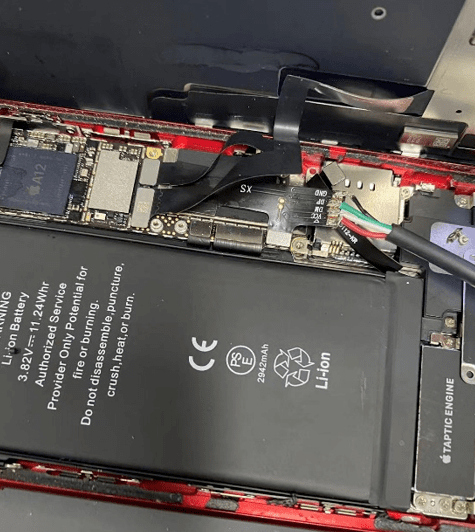

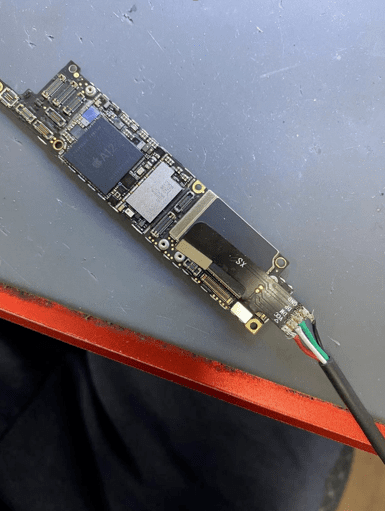

Connect mainboard to the power supply.

Step 2

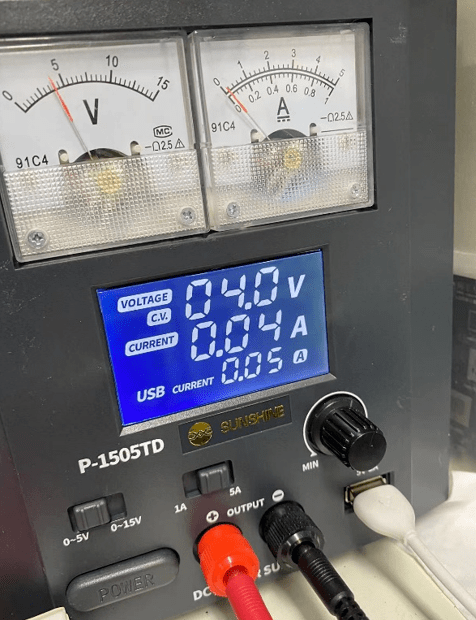

Power supply reads 0.04A current going through the circuit.

It means some component on the circuit is shorted or there's a power leakage somewhere on the board.

Step 3

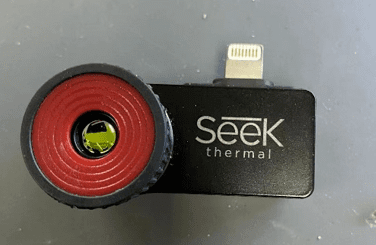

We use this Seek thermal camera to scan the device for hot spot.

Plug it into an iPhone and open the app.

Step 4

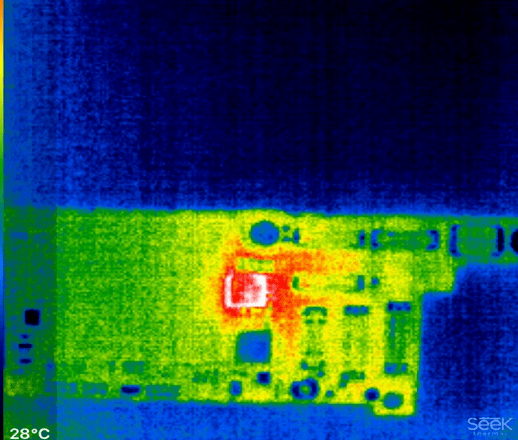

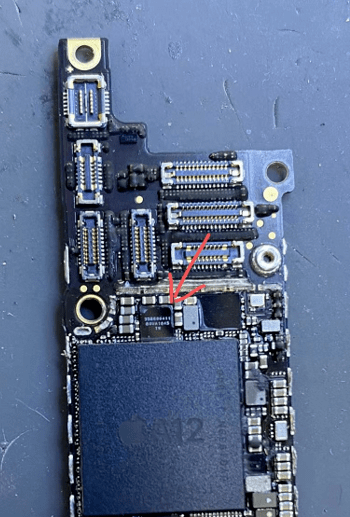

It's not too hard to spot the Audio IC is heated to 30 C Degree.

Step 5

Change IC to fix the issue.

Step 6

Hook the power supply back to motherboard and check.

Well played!

]]>Wed, 18 May 2022 13:53:08 +1000<![CDATA[iTunes Error Code Reference Table]]>https://www.imobilestore.com.au/blogs/post/itune-error-code-reference-table Here we have compiled a list of common iTunes error codes, and the corresponding issues.  ]]>

Here we have compiled a list of common iTunes error codes, and the corresponding issues.

 Error Code Failure Analysis
 -1Baseband CPU, EEPROM 
 1 Baseband CPU
 6 CPU, NAND, EEPROM
 7 PD Fast Charging IC
 9 NAND
 14 EEPROM, NAND
 21 RAM
 53 Baseband, check PC network first
 56 NFC
 2009 Baseband, Use a different PC to restore first
 4005 NAND, CPU
 4013NAND, RAM, i2c, check USB Cable first 
 4014NAND, RAM, CPU, i2c 
 4015 RAM
 0xe8000068Check USB cable 
]]>Tue, 17 May 2022 14:52:13 +1000<![CDATA[Different Types of Pixel 6 Pro Screens (OZ vs US/ Factory Stock vs Service Pack)]]>https://www.imobilestore.com.au/blogs/post/different-types-of-pixel-6-pro-screensOn the left, it's a US version factory stock. The home button is sitting horizontally. The Aussie version has a tilted home button.  If you want t ]]>

On the left, it's a US version factory stock. The home button is sitting horizontally. The Aussie version has a tilted home button.

If you want to use this screen, then you will need to cut the hole bigger to fit the Aussie home button.

So avoid when possible.

In the middle, this is a Oz version factory stock. The home button on the screen will not work.

All you need to do it to move the old home button to this screen and it will work fine.

On the right is the genuine service pack screen. You can use the new screen and new home button without any issue.

There an additional step to recalibrate the home button on this link:

https://pixelrepair.withgoogle.com/udfps

How to tell whether it's a genuine service pack?

The competition is becoming stiff on the market, so a lot of places are selling factory stock and make them look like a Service Pack.

There's one easy way to tell them apart:

The service pack will usually come with a "Caution" sticker note at the front.

Another way to tell is when you cannot recalibrate the fingerprint sensor on Google site, then it's a factory stock.

]]>Tue, 17 May 2022 14:25:40 +1000<![CDATA[Steps for Using SL Universal Home Button Flex (for iPhone 7/8/Plus/SE2)]]>https://www.imobilestore.com.au/blogs/post/steps-for-using-sl-universal-home-button-for-iphone-7-8-plus-se21Step 1 Cut the home button flex off the screen. See image on the left after the removable. Step 2.1 Installing the SL home button flex to the screen as sh ]]>

Why Use a Universal Home Button Flex Cable

When you replace the home button for iPhone 7/8/7 Plus/8 Plus/SE2, the home button will not be functional. It's due to encryption on the buttons.

There are a few ways to make this working.

The best solution is to use a universal home button flex. It bypasses the encrypt and restore the pressing function for a home button (But not touch ID). So customer can still use an original Apple home button which is higher quality.

Step 1

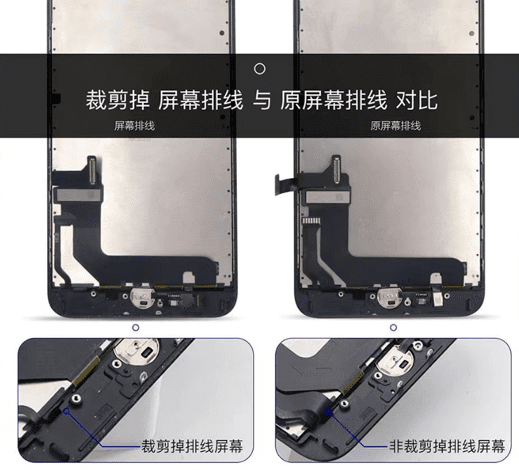

Cut the home button flex off the screen.

See image on the left after the removable.

Step 2.1

Installing the SL home button flex to the screen as shown.

Step 2.2

Connect home button and finish the installation

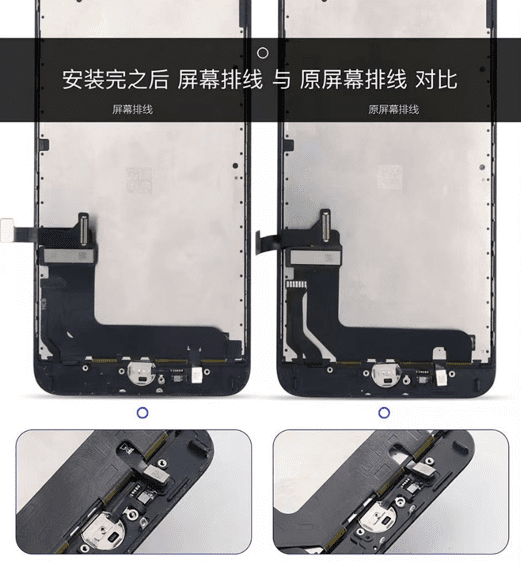

Comparison of before (on the right) and after (on the left) screen.
Now the iPhone will have home button clicking function now.



]]>Tue, 17 May 2022 13:46:55 +1000
